Exclamation Camionetta Sahariana AS 42 - Italeri 1/35

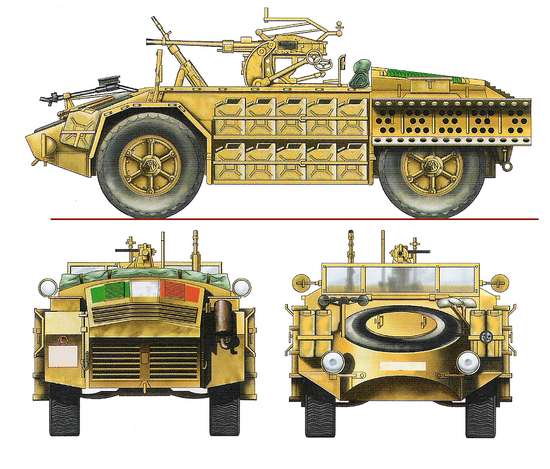

I will begin this new project: The Camionetta Sahhariana AS 42, with the Italian colors, in 1943.



The kit Italeri is a new release and I am anxious to begin!!!!

The version kit is with 20mm Breda gun:




Soon !!!
__________________
Reply With Quote top
  #2
Old 01-14-2007, 06:34 AM
paulyrichard's Avatar
paulyrichard paulyrichard is offline
4 8 15 16 23 42

Join Date: May 2006
Location: Essex, UK
Posts: 484
I look forward to seein' what you do with it! Are you gonna' trick it out with some PE?!
__________________
CREAMCHEESE!


Reply With Quote top
  #3
Old 01-14-2007, 07:19 AM
lquah's Avatar
lquah lquah is offline
vBench

Join Date: Apr 2006
Location: Hong Kong SAR
Posts: 4,614
Cool..can't wait to see your Sahariana

Lawrence
__________________




Adrian Cronauer [imitating Walter Cronkite]: I just want to begin by saying to Roosevelt E. Roosevelt, what it is, what it shall be, what it was. The weather out there today is hot and shitty with continued hot and shitty in the afternoon. Tomorrow a chance of continued crappy with a pissy weather front coming down from the north. Basically, it's hotter than a snake's ass in a wagon rut.
Reply With Quote top
  #4
Old 01-14-2007, 07:39 AM
Primus's Avatar
Primus Primus is offline
Member

Join Date: Dec 2006
Location: Ljubljana
Posts: 87
Quote:
Originally Posted by paulyrichard View Post
I look forward to seein' what you do with it! Are you gonna' trick it out with some PE?!
I think Italeri offers PE parts and some resin parts with the kit.
Reply With Quote top
  #5
Old 01-14-2007, 11:03 AM
Larry Bates's Avatar
Larry Bates Larry Bates is offline
vBench

Join Date: Aug 2005
Location: I know a guy who sells t-shirts at a nearby location to Willy's grave.
Posts: 4,246
Send a message via Skype™ to Larry Bates
Excellante!

Larry
__________________
These are beautiful people baby.....

Opening Laz's World on Ice next summer, no franchises. Just cold ice, and figure skaters, ring side bar service.

Reply With Quote top
  #6
Old 01-15-2007, 04:48 AM
Panzerserra's Avatar
Panzerserra Panzerserra is offline
vBench

Join Date: Dec 2004
Location: Anapolis - GO - Brazil
Posts: 209
Send a message via MSN to Panzerserra
Quote:
Originally Posted by paulyrichard View Post
I look forward to seein' what you do with it! Are you gonna' trick it out with some PE?!
Paul, I made this OOTB, but she have PE...regards and be accompanying....

hug !!!


Panzerserra
__________________
Reply With Quote top
  #7
Old 01-15-2007, 04:48 AM
Panzerserra's Avatar
Panzerserra Panzerserra is offline
vBench

Join Date: Dec 2004
Location: Anapolis - GO - Brazil
Posts: 209
Send a message via MSN to Panzerserra
Danke, Gents...be accompanying....
__________________
Reply With Quote top
  #8
Old 01-20-2007, 04:35 AM
Panzerserra's Avatar
Panzerserra Panzerserra is offline
vBench

Join Date: Dec 2004
Location: Anapolis - GO - Brazil
Posts: 209
Send a message via MSN to Panzerserra
Historical:

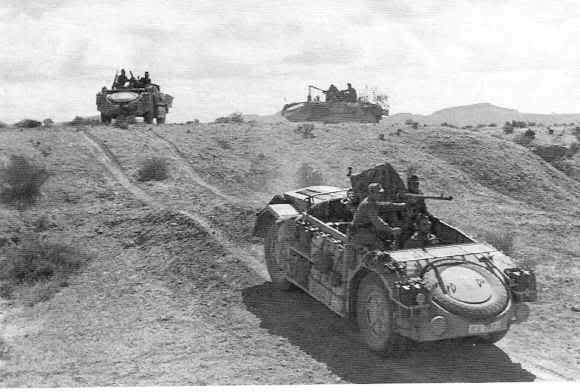

During Second World War, several vehicles were adapted for employment in special situations, but rare they were those especially produced for certain ends. One of these exceptions is, without a doubt, the Camionetta Sahariana AS-42 (Africa Settentrionale or North African - 1942).

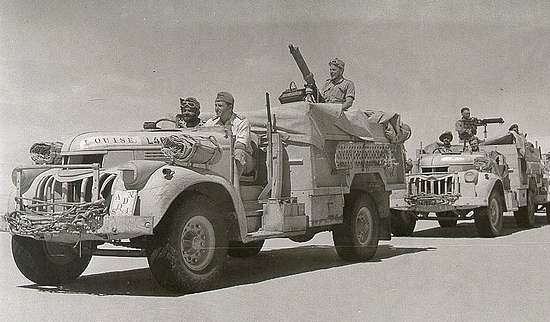

This vehicle was especially developed for the African Desert, in response to the noisy successes of famous British LRDG that, in 1941, it disseminated the panic and the destruction in the rearguard of the German troops in the African front. While LRDG was used of vehicles adapted for your incursions, the Italians wanted a specific vehicle for this job.

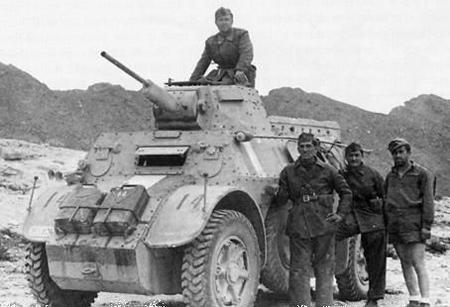

In the end of 1941, the Supreme Command of Regiol Esercito emitted construction specs for an fast scout, agile, potent, very armed, of long action ray and with great transport capacity. The Viberti-SpA answered to these specifications with Camionetta Sahariana AS-42 for the desert campaign. For activation and standardization of equipments, Viberti-SpA was used of the same chassis and mechanization of armored-car Autoblinda AB-41.This group was highly efficient and sophisticated for the time, with your four wheels stearing, individual suspensions and 4x4 traction with autoblock central transmission.

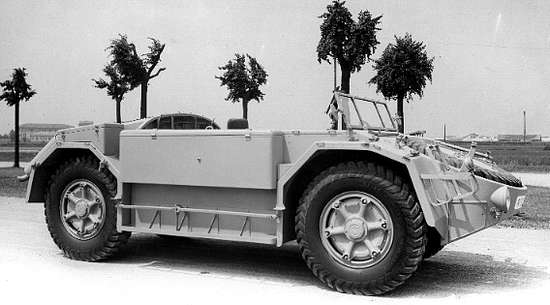

The success of Sahariana was continued by the version AS-43, also known as Sahariana II or Metropolitan. She entered in service in the end of the African Campaign and, later, it was used in Italy and in the European Continent. The most evident modifications in relation to the original model were the absence of a line of the lateral jerry-cans, substituted by a great luggage rack and the substitution of the tires for other, more reinforced.

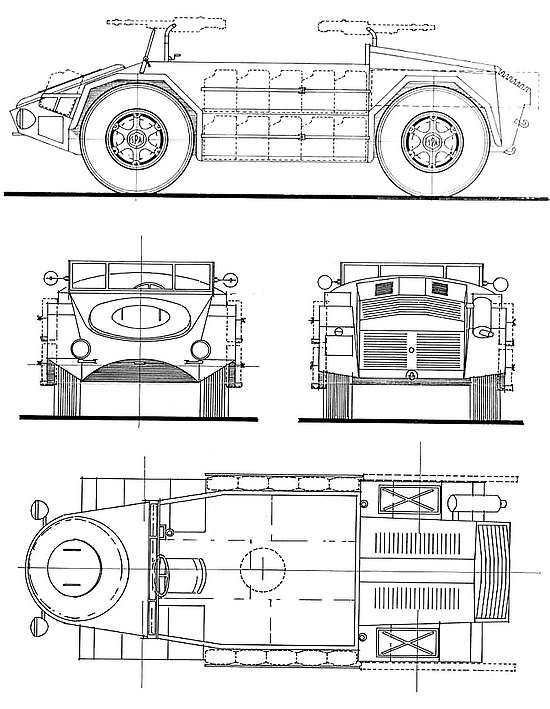

Technical specifications:

Engine: SPA-Abm 6 cyl. in line, rear-back, gasoline, 4995cc and 80 HP

4x4 wheel-drive

Cooling system: Double radiator with two fans

Tires: usually 9.25 x 24 or 11.25 x 24.

Fuel tanks: 2 (frontal and back); 200 lts in each

Autonomy: 800 kms

Weight :4.5 ton

Length: 5.62 m

Width: 2.26 m

Height: 1.80 m

Maximum speeds: 80 km/h in highway; 56 Km/h in desert

Production: from 120 to 150 units (?).



The Saharianas used several types of armaments, such as:

8mm MG: Breda Mod. 37 Medium Machine Gun (which uses 24 round magazines).
20mm ATR: Solothurn S18/1000 semi-automatic 20mm Anti-Tank Rifle (10 round magazines).
20mm AA: Breda Mod. 35 20mm Dual Purpose AA Gun (uses 12 round "chargers").
47mm CAN: 47mm Mod. 37 Anti-Tank Gun.

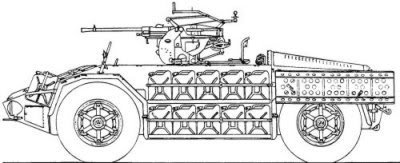

Breda AA 20mm:

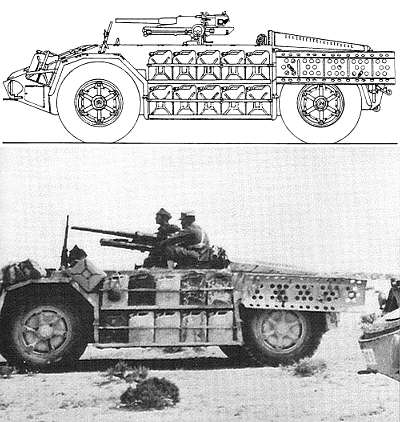

CAN 47mm

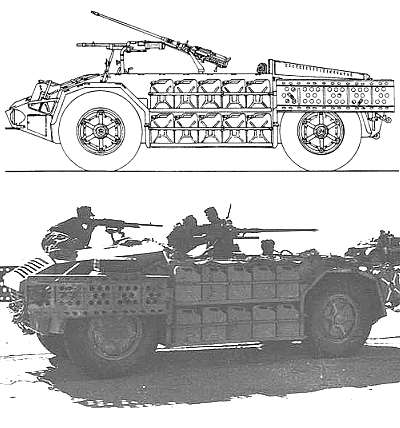

Solothurn S18/1000 semi-automatic 20mm Anti-Tank Rifle:


After the War, few Saharianas (seemingly, the survivors of all the production) they were used to equip to Police, usually painted in red-oxide, where they were used up to 1954. Unhappily, no Sahariana survived until the days, today.
__________________
Reply With Quote top
  #9
Old 01-20-2007, 05:00 AM
T140's Avatar
T140 T140 is offline
vBench

Join Date: Dec 2006
Location: Rainham, Kent, England
Posts: 410
Send a message via MSN to T140
What a great looking vehicle. With the shape of that front end it alomost looks like it should be amphibious !
I think I shall have to add this one to my ever growing wish list.
__________________


Reply With Quote top
  #10
Old 01-20-2007, 03:21 PM
lquah's Avatar
lquah lquah is offline
vBench

Join Date: Apr 2006
Location: Hong Kong SAR
Posts: 4,614
Marcos

Thanks for the history lesson but let's get started with the build

Lawrence
