good morning gents
yesterday had started the weathering on the M48H, just added a few paint chips on the camo with Vallejo



best regards
Ivan Loera
Reply With Quote top
  #12
Old 01-17-2009, 12:46 AM
anthony roberts anthony roberts is offline
vBench

Join Date: Apr 2008
Location: Portland Oregon
Posts: 152
Hello Ivan

This looks great ....I like it
Reply With Quote top
  #13
Old 01-17-2009, 08:27 AM
Ivan Loera's Avatar
Ivan Loera Ivan Loera is offline
vBench

Join Date: Sep 2008
Location: Mexico D.F.
Posts: 30
today on the brave tiger....
morning folks! want to show you more advances on the weathering...
first a bit of shadows using very thinned brown and tamiya black.


then i made a glaze using NATO green, gunze H50 and %40 tamiya clear


and then... another glaze on the gray spots using dark gray a little bit of white and %40 tamiya clear.


well that all for today, stay tuned at this channel. lol
Reply With Quote top
  #14
Old 01-17-2009, 06:58 PM
Stuke Sowle's Avatar
Stuke Sowle Stuke Sowle is offline
vBench

Join Date: Mar 2004
Location: Olympia, WA
Posts: 1,392
I like this channel!!

Very unique work Ivan. Looks a bit sci-fi! Love the variations in tone on the camo.
Reply With Quote top
  #15
Old 01-18-2009, 10:45 AM
Lost legionar's Avatar
Lost legionar Lost legionar is offline
vBench

Join Date: Nov 2008
Location: Now the Sun sets on the SF Bay Area
Posts: 206
Channel

Quick! What's the name of the station? I'll have to tune in every once in a while.
Reply With Quote top
  #16
Old 01-20-2009, 08:07 AM
Ivan Loera's Avatar
Ivan Loera Ivan Loera is offline
vBench

Join Date: Sep 2008
Location: Mexico D.F.
Posts: 30
on todays episode...

good morning gents! today i want to show you a little trick to mask the wheels of the AFV´s

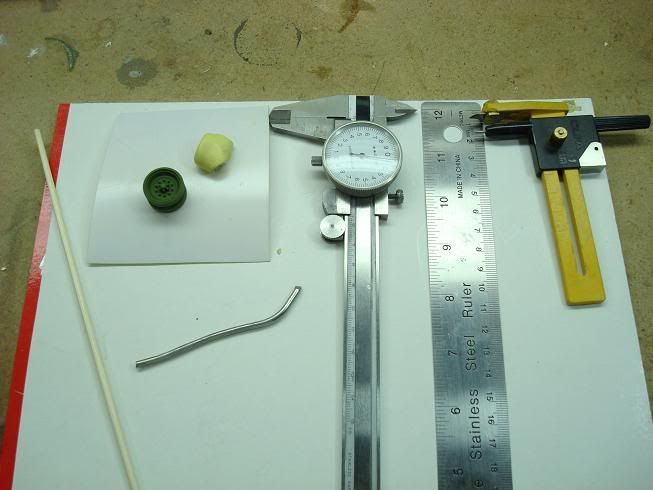

all you need its this:
TOOLS:
vernier caliper
ruler
olfa circle cutter
blue tac or similar
silly putty
airbrush
MATERIALS:
styrene sheet
wide soldering wire
bamboo stick

first with the vernier, measure the wide of wheel

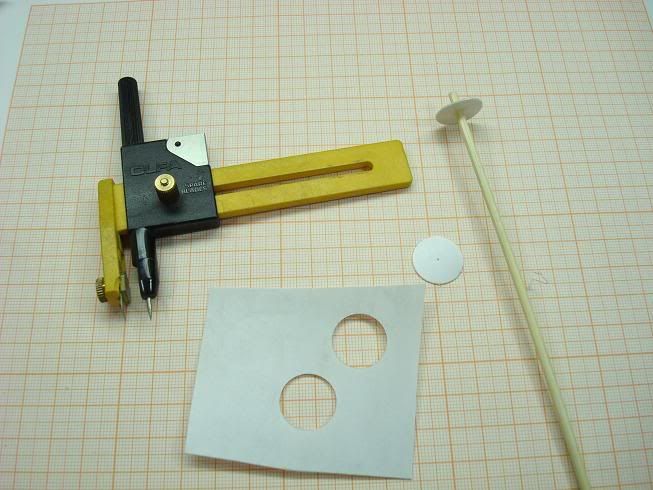

then when you have the right wide measure of the wheel, use the ruler to open the olfa circle cutter to an a proper size, cut two circles and then glue one to the bamboo stick

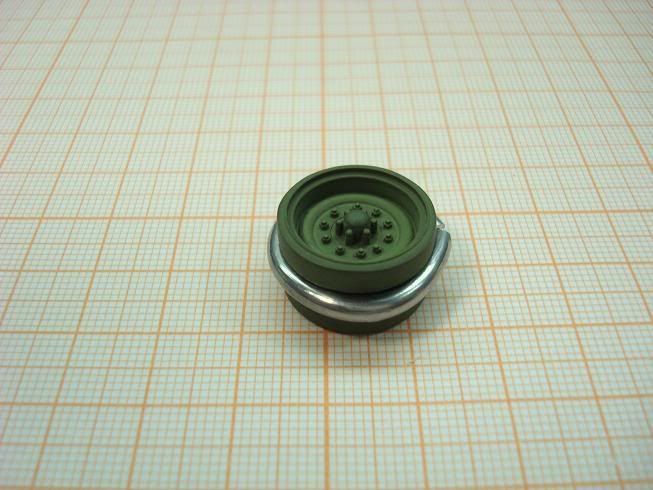

use the soldering wire and wrap it around the wheel


put a bit f blue tac on each side of the styrene circle

now its time to put all together

with your airbrush spray matt black or gray paint to the wheel

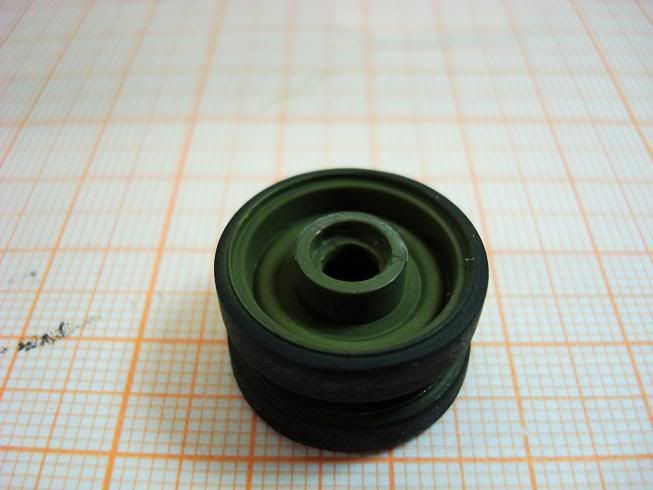

voila!!!perfectly painted wheel! check how in the middle of the wheel still have the original NATO green



now its time to have fun with the silly putty

just use a few to mask the ilder

use again the airbrush

voila! here it is the result

you can use a fine brush to correct and give the final touches to each wheel
that's all for today gents, stay tuned
Ivan Loera (Mexico)

Last edited by Ivan Loera; 01-20-2009 at 09:02 AM.
Reply With Quote top
  #17
Old 01-20-2009, 11:04 AM
Petarted's Avatar
Petarted Petarted is offline
vBench

Join Date: Apr 2007
Location: Isla de Muerta, NJ Shore
Posts: 242
Looks great,good idea for the wheels
Reply With Quote top
  #18
Old 01-21-2009, 10:15 AM
Roelke's Avatar
Roelke Roelke is offline
vBench

Join Date: Feb 2008
Location: Neeroeteren
Posts: 35
Hey

Hey Ivan

Great progress on your model and I must say great find on how to spray roadwheels easy. I always hate to handpaint them I am going to give your plan off attack a go on my next model. It just looks so simple and easy.

Regarding the model I really like the Chips you made specially on the drivers hatch and on the turret between the two hatches. What did you try to achieve spraying NATO green, gunze H50 and %40 tamiya clear? You describe it as a glaze but It's not entirely clear for me what you mean.

Cheers Roel
__________________
Strike hard Strike home

On the workbench:
Leopard 1A5 BE
Making a house
Kingtiger
Reply With Quote top
  #19
Old 01-21-2009, 11:52 AM
Ivan Loera's Avatar
Ivan Loera Ivan Loera is offline
vBench

Join Date: Sep 2008
Location: Mexico D.F.
Posts: 30
hi Roelke!
maybe the thing that i tried to achieve as a glaze didn't work quite as that, maybe it turned out like a kind of "filter" but well it gives a bit of more color variation to the base. i must admit that the paint chips on the turret didn't like me a lot, so i tried the "glaze" to turn it down a bit
thanks for watching
Ivan Loera
Reply With Quote top
  #20
Old 01-21-2009, 01:23 PM
Tzanos's Avatar
Tzanos Tzanos is offline
New Member

Join Date: Jun 2006
Location: Athens,Greece
Posts: 18
Nice model.Smartly also the technique with the wheels, but i think only with the styrene circles as the other one has no very good masking results.
